Soft Magnetic Powder Series

INQUIRY

Ferro-Silicon Aluminium Alloy Powder is an alloy material consisting of iron, silicon and aluminium that is commonly used in the manufacture of magnetic cores or other applications where high permeability properties are required. This alloy material has good permeability and low hysteresis loss, so it is used to make a variety of soft magnetic cores, magnetic rings, one-piece inductors, inverter reactors, magnetic sheets, shaped magnetic materials, wave-absorbing materials, etc.
Grade: FeSi9.6Al5.4
Production method: air atomisation
Powder particle size: the coarsest can be sieved-80 mesh, the finest-500 mesh, and can be sieved according to customer requirements of the interval powder.
Loose packing density: 3.0-5.0 (g/cm³)
Oxygen content: < 300ppm

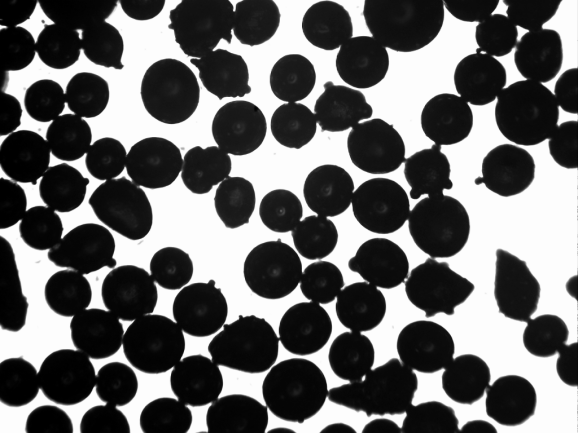

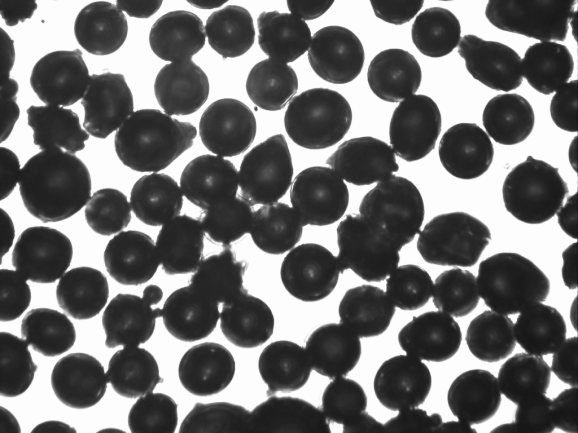

Powder morphology:

100-200 mesh	100-200 mesh

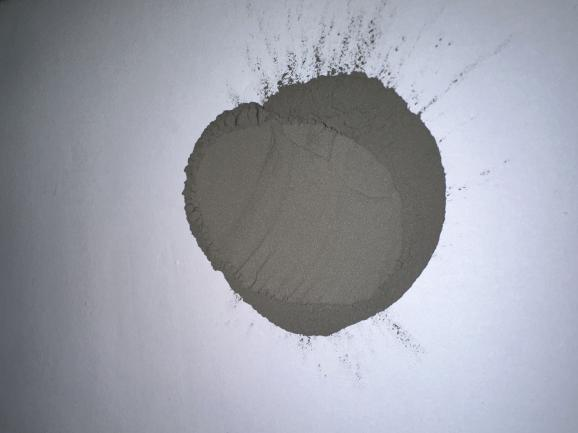

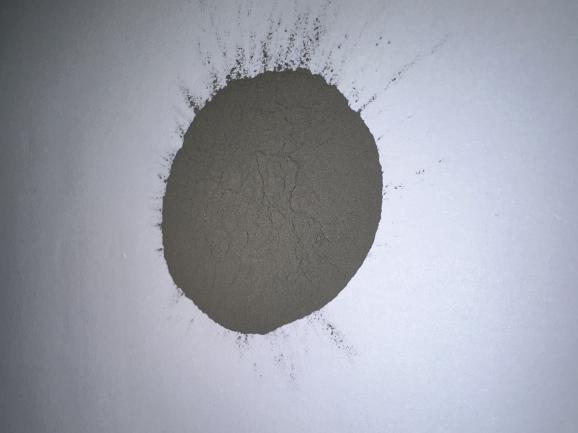

Pictures of ferrosilicon aluminium powder (-500 mesh):

Keyword:

Magnesium-based hydrogen storage materials

Cutting-edge ultrafine metal powder making equipment

Customized powder varieties can be customized for customers
